Product Dimensions 24.13"h x 30"w x 21.5"d

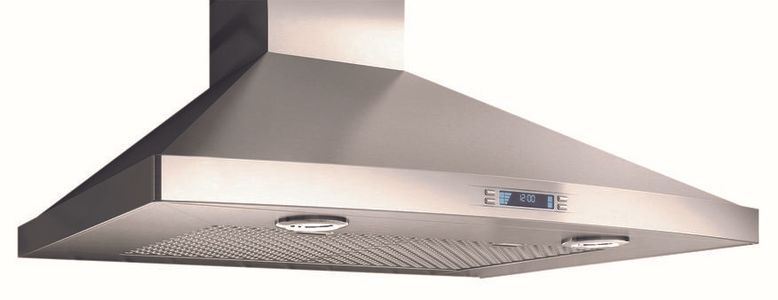

The rounded front, beautifully sloping angles and stainless steel finish of Pilato make a striking visual statement.Read More
Available in 30”or 36” widths, Pilato features include a powerful 600 CFM blower, LED lighting with 2 light intensities, dishwasher-safe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety.
Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 24.13 |
| Duct Size (in.) | Top Round 6” |
| Depth (in.) | 21.5 |
| Collection | Pilato |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Maximum CFM | 600 |
| Bulb Type | LED |
| Sones Rating | 2.03 - 8 |
| Fan Speed Options | 4 |
| Width (cm) | 76.2 |
| Height (cm.) | 61.29 |
| Depth (cm.) | 54.61 |
| Voltage | 120 |
| Amp | 3.7 |
| Frequency | 60 |
| Range Hood Features | Filter Indicator |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Additional Attributes: | |
Specifications: | |
| Speed 1 | 160 CFM |
| Speed 2 | 280 CFM |
| Speed 3 | 470 CFM |
| Speed 4 | 600 CFM |
| Controls | Stainless Steel with black glass |
| Illumination | Touch Control 3 Speeds + Booster |
| Installation Type | Ducted or Recirculating with Recirculating Kit (sold separately) |
| Duct Transition | Top Round 6” |
Kits: | |
| Recirculating Kit (Contains 6” deflector & 2 Round Carbon Filters) | KIT02766 |
| Chimney Extension Kit | KIT02766 |
Consumable Parts: | |
| Charcoal Filter Replacement | KIT02667 |
| Grease Filter Replacement | GF09PB |
Install Heights: | |
| Ranger Hood | Ducted - Min: 7’5”, Max: 9’2” | Recirculating - Min: 7’5”, Max: 9’5” |
| Ranger Hood with extension duct covers | Ducted - Min: 8’5”, Max: 11’3” | Recirculating - Min: 8’7”, Max: 11’7" |
