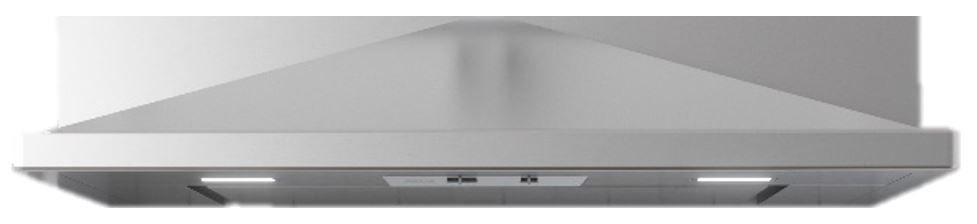

    Zephyr Core Collection Pyramid 36" Stainless Steel Under Cabinet Hood

    Zephyr

    Model #:

    ZPY-E36BS

    Model #: ZPY-E36BS
    833730
    Zephyr
    $1,039.00

    At a Glance

    Product Dimensions 7.38"h x 35.94"w x 21"d

    Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive yet utilitarian design is upgraded with a perimeter aspiration panel (PAS) for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12? depth ensures simple operation and a true fit with popular cabinet styles.Read More

    $1,039.00
    $1,149.00Save $110.00

    What We Offer

    Protect Your Purchase
    None Selected
    Services
    None Selected

    Get to know this product.

    Product Overview

    Product Overview

    LumiLight LED lighting

    3 speed mechanical slide controls

    Vertical or horizontal ducting

    Dual level lighting

    Dishwasher safe aluminum mesh filter

    Perimeter aspiration panel

    *Images may not reflect actual size.

    Useful Documents
    Specification Sheet
    Recirculating Kit Manual
    HVAC Fittings Specification Sheet
    Specifications

    General Specs

    Width (in.)35.94
    Height (in.)7.38
    Duct Size (in.)7" Round, 3.25” x 10”
    Depth (in.)21
    CollectionPyramid
    ColorStainless Steel
    Shipping Depth (cm)100.33
    Shipping Height (cm)66.55
    Shipping Width (cm)31.75
    Weight Kilogram18.14
    Appliance Fit Width (cm.)91
    Manufacturer Warranty1 Year Labor / 3 Year Parts
    Color Finish NameStainless Steel
    Range Hood TypeUnder Cabinet
    ADA CompliantNo
    ENERGY STAR CertifiedNo
    Appliance Fit Width (in.)36
    Product Weight (lbs.)35.8
    Smart CompatibleNo
    Bulb TypeLED
    Grease Filter TypeAluminum Mesh
    Sones Rating2 - 5
    Fan Speed Options3
    Vent LocationTop
    Height Above Cooktop24 - 32
    Shipping Depth (in.)39.5
    Shipping Width (in.)12.5
    Shipping Height (in.)26.2
    Width (cm)91.28
    Height (cm.)18.73
    Depth (cm.)53.34
    Product Weight (kg)16.24
    Height Above Cooktop Centimeter60.96 - 81.28
    Voltage120
    Amp2
    Range Hood FeaturesDuctless Capable
    Noise Level (Sones)Standard - (High)
    Ventilation TypeDucted

    Additional Information

    Replacement Part for Following Model Numbers:ZPY-E36AS

    Zephyr Core Collection Pyramid 36" Stainless Steel Under Cabinet Hood

    Model #ZPY-E36BS
    (2)
    Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive yet utilitarian design is upgraded with a perimeter aspiration panel (PAS) for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12? depth ensures simple operation and a true fit with popular cabinet styles.
