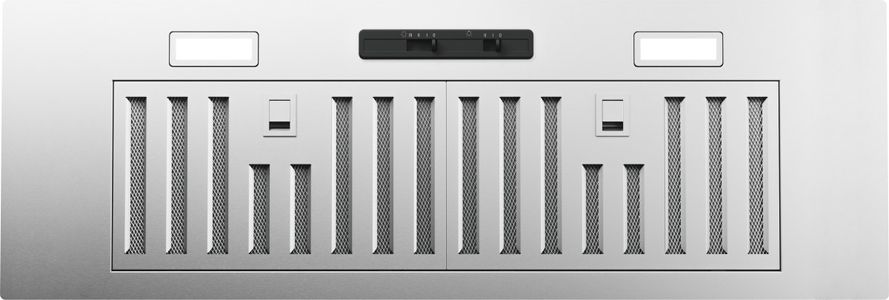

    Zephyr Tornado I 34" Stainless Steel Insert Range Hood

    Zephyr

    Model #:

    AK8134BS

    Model #: AK8134BS
    1200400
    Zephyr
    $1,199.00

    At a Glance

    Product Dimensions 12.38"h x 33.56"w x 11.19"d

    The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.Read More

    $1,199.00
    $1,329.00Save $130.00

    Appliance Fit Width (in.):34

    What We Offer

    Protect Your Purchase
    None Selected
    Services
    None Selected

    Get to know this product.

    Product Overview

    Product Overview

    Main Features

    600 CFM

    Recirculating

    Hybrid baffle filter

    Stainless steel

    Vertical and horizontal ducting

    Other Features

    LumiLight LED lighting

    Dual-level lighting

    Mechanical slide controls

    Optional adjustable-depth liner

    Useful Documents
    Specification Sheet
    User Manual
    Recirculating Kit
    HVAC Fittings
    Liner Specifications
    Specifications

    General Specs

    Width (in.)33.56
    Height (in.)12.38
    Duct Size (in.)6" Round
    Depth (in.)11.19
    CollectionTornado I
    ColorStainless Steel
    Appliance Fit Width (cm.)85
    Manufacturer Warranty1 Year Labor / 10 Year Parts
    Color Finish NameStainless Steel
    Range Hood TypeInsert
    Appliance Fit Width (in.)34
    Maximum CFM600
    Bulb TypeLED
    Grease Filter TypeBaffle
    Sones Rating1.4 - 6
    Fan Speed Options3
    Vent LocationTop
    Width (cm)85.24
    Height (cm.)31.45
    Depth (cm.)28.42
    Voltage120
    Amp3
    Frequency60
    Range Hood FeaturesDuctless Capable
    Noise Level (Sones)Standard - (High)
    Ventilation TypeConvertible (Both)

    Ventilation

    Ventilation DirectionHorizontal and vertical

    Mounting Height

    Height Above Electric Cooktop (in.)20" - 36"
    Height Above Electric Cooktop (cm.)50.8 cm - 91.44 cm
    Height Above Gas Cooktop (in.)24" - 36"
    Height Above Gas Cooktop (cm.)60.96 cm - 91.44 cm

    Zephyr Tornado I 34" Stainless Steel Insert Range Hood

    Model #AK8134BS
    (1)
    The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
