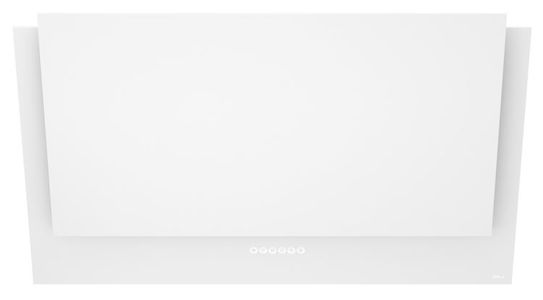

    Zephyr Designer Collection Apex 36" Matte White Glass Wall Mounted Range Hood

    Zephyr

    Model #:

    DAP-M90AMWX

    Model #: DAP-M90AMWX
    828781
    Zephyr
    $2,599.00

    At a Glance

    Product Dimensions 19.75"h x 35.38"w x 19.81"d

    Sharp angles, a glossy exterior, and cutting-edge functionality come together to create the distinguished Zephyr’s Apex Wall hood. This hood features Capacitive Touch controls, Tri-level LED lighting, multiple blower options, Auto delay-off and Clean Air Function that automatically turns the range hood on Speed 1 every four hours for 10 minutes to circulate the air. Optional internal and external blower and duct covers are sold separately.Read More

    $2,599.00
    $2,889.00Save $290.00

    What We Offer

    Protect Your Purchase
    None Selected
    Services
    None Selected

    Get to know this product.

    Product Overview

    Product Overview

    Multiple blower options

    Capacitive touch controls

    Tri-level lighting

    LED lighting

    Vertical or horizontal ducting

    Optional wireless remote control

    Optional duct cover extension kit

    *Range hood only; blower sold separately.

    Useful Documents
    Specification Sheet
    User Manual - Bilingual
    Blower Specifications
    Duct Cover Extension
    Make-Up Air Kit
    Specifications

    General Specs

    Width (in.)35.38
    Height (in.)19.75
    Duct Size (in.)6" Round, 8" Round
    Depth (in.)19.81
    CollectionApex
    ColorWhite
    Shipping Depth (cm)97.54
    Shipping Height (cm)66.55
    Shipping Width (cm)58.42
    Weight Kilogram29.48
    Appliance Fit Width (cm.)90
    Manufacturer Warranty1 Year Labor / 2 Year Parts
    Color Finish NameMatte White Glass
    Range Hood TypeWall Mounted
    ADA CompliantYes
    ENERGY STAR CertifiedNo
    Appliance Fit Width (in.)36
    Product Weight (lbs.)55
    Smart CompatibleNo
    Bulb TypeLED
    Grease Filter TypeAluminum Mesh
    Sones Rating1.4 - 6
    Fan Speed Options3
    Height Above Cooktop24 - 36
    Shipping Depth (in.)38.4
    Shipping Width (in.)23
    Shipping Height (in.)26.2
    Width (cm)89.85
    Height (cm.)50.17
    Depth (cm.)50.32
    Product Weight (kg)24.95
    Height Above Cooktop Centimeter60.96 - 91.44
    Voltage120
    Amp6.42
    Frequency60
    Range Hood FeaturesAutomatic Shut Off, Ductless Capable
    Noise Level (Sones)Standard - (High)
    Ventilation TypeDucted

    Compatible Blower Models

    Internal Blower (CBI-290C)200-290 CFM, 1.4-3 sones
    Internal Blower (CBI-600A)240-600 CFM, 1.8-6 sones
    In-Line Blower (PBN-1000A)500-1,000 CFM
    External Blower (CBE-1000)500-1,000 CFM
